You can rest assured to buy Aluminum Alloy Dual Height Bike Racks with Lock bracket from our factory and we are committed to providing you with exceptional after-sales service and guaranteed timely delivery from our factory.
Model Number: D-20AL；D-55MM-LB
Product Origin: China
Payment: T/T, L/C
Shipping Port: Xiamen

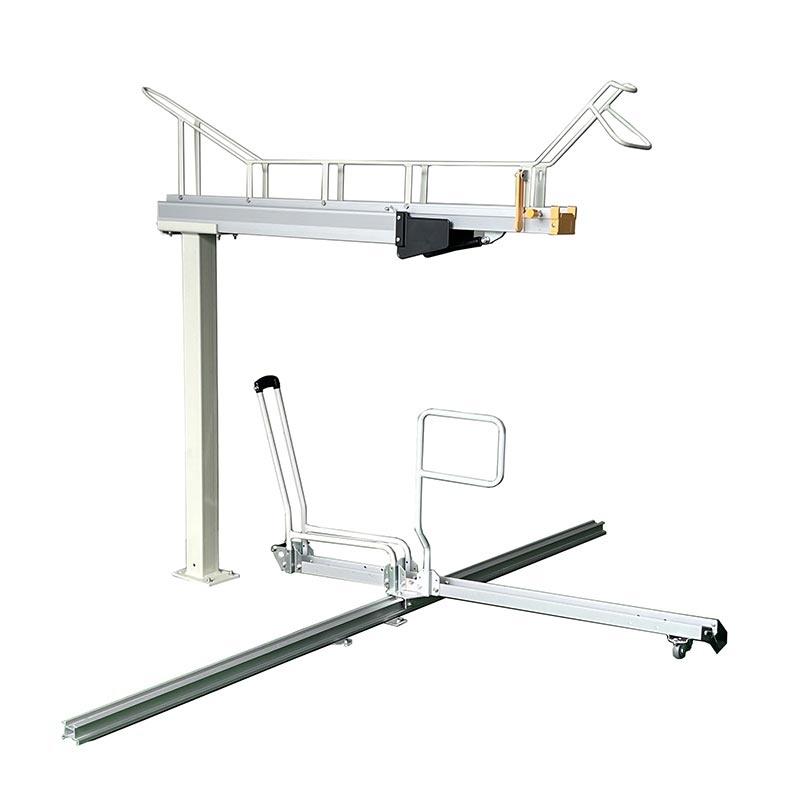

The combination of Aluminum Alloy Dual Height Bike Racks with Lock Bracket and a lower horizontal sliding rack with matching footbrakes provides multiple benefits for parking lots.
This combination not only significantly reduces the cost of setting up racks without reducing the amount of parking, but also improves the efficiency of parking lot storage. The addition of footbrakes makes the lower sliding rack more stable for users, greatly facilitating access to the bikes. This design innovation saves costs and greatly enhances the user experience.
| Product Name | Aluminum Alloy Dual Height Bike Racks with Lock bracket |
| Model Number | D-20AL；D-55MM-LB |
| Material |
Pillar of the upper rack: Power coated steel Upper rack and sliding bike rack: Aluminum alloy |
| Colors | Light grey or customized |
| Capacity | 1 bike per upper rack |
| Loading |
Upper tier rack: below 20kg Lower tier rack: below 40kg |
| Mount | In ground, surface mount (expansive anchor bolts) |
| Installation Angle | 10° or customized |
| Recommended Ceiling Height | 2500mm or more |
| Maintenance | Minimal maintenance required |
Advantage for User
-Equipped with gas spring, it is easy to raise and lower the upper tier rack.
-The plug can effectively fix the rear wheel of the bicycle, which is safe and reliable.
-Horizontal sliding rack with locking bar and footbrake, are easy for users to park and retrieve the bike, can also meet the needs of users to prevent theft.
Benefits for site operators
-Space efficient, high-density storage in a limited space
-Easy to install
-Low maintenance
Green cycling and storage
-Recyclable and environmentally friendly materials
Possible locations
-Both Indoor and outdoor use.
Delivery
Current lead time is 7-9 weeks from receipt of your written purchase order. Extra time may be needed if extensive customization is required.
