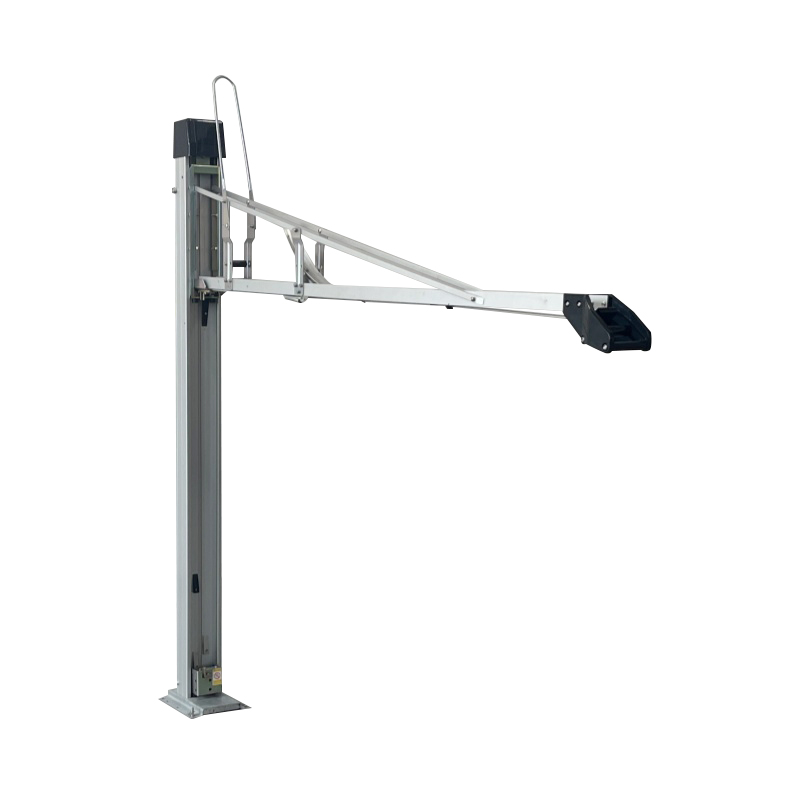

Xinzhongsen manufacture and supply Basic Vertical Bike Rack for Heavy Bike, this bike rack is designed specifically for heavy-duty bicycles. Constructed from high-quality materials, our Basic Vertical Bike Rack offers a secure and space-efficient way to store heavy bikes. Its vertical design maximizes storage capacity, allowing for multiple bikes to be parked in a small footprint. This not only saves space but also ensures that the bike parking area remains organized and tidy.
Model Number: F-QLH30
Product Origin: China
Payment: T/T, L/C
Shipping Port: Xiamen
Basic Vertical Bike Rack for Heavy Bike can accommodate different types of bicycles, such as mountain bikes, e-bike weighing between 22 to 30 kilograms. This bike rack made of durable material with high quality to ensures a secure and reliable storage solution, making it an ideal choice for high-capacity cycle storage needs and a popular option among cycling enthusiasts.
| Product Name | Basic Vertical Bike Rack for Heavy Bike |
| Model Number | F-QLH30 |
| Material | Pillar and rack: Aluminum alloy |
| Measurements | L:1970 * W:220 * H:1820 （mm） |
| Colours | Light grey or customized |
| Capacity | 1 bike/set |
| Loading | 22~30KG |
| Mount | Vertical rack for fixing to floor using expansive anchor bolts. |
| Installation Angle | 10° or customized |
| Recommended Ceiling Height | 2500mm |
| Maintenance | Minimal maintenance required |
User benefits
-Ergonomically designed to make the bike can be lifted very easily.
-Automatically lifting to the top after retrieve the bike.
-Stability and security
Benefits for site operators
-Space efficient, high-density storage in a limited space (or reduces the size of the site)
-Can be dissembled for easy of transportation.
-Easy to install
-Minimal maintenance.
Green cycling and storage
-Recyclable and environmentally friendly materials
Possible locations
-Both Indoor and outdoor use.
The Basic Vertical Bike Rack for Heavy Bike can be installed at the angle of 10°，30°，45° to accommodate different situations , particularly useful for sites with narrow aisles.
Angle 10°-Centre to centre distance of 60cm;
We take pleasure in guiding you through the layout of your available space, ensuring that the parking area is both highly efficient and seamlessly accessible.
The upper vertical lift bike rack and lower sliding rack of our bike rack system are designed to function independently, offering you the flexibility to select and purchase additional models that best align with the specific requirements of your project. Should you require a more tailored solution or have any inquiries about customization, please feel free to reach out to us at your convenience. We are always here to assist you with any detailed program or further information you may need.
Current lead time is 7-9 weeks from receipt of your written purchase order. Extra time may be needed if extensive customization is required.
If you have any special requirements regarding the delivery date, please feel free to contact us
