Xinzhongsen as the professional manufacturers producing Gas Spring Assisted Aluminum Alloy Outdoor Double Tier Bike Rack, it is an excellent solution for efficiently managing bicycle storage in spaces with limited room, such as subways and train stations, campus, shopping mall. We are looking forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!
Model Number: F-QLH20; D-55mm
Product Origin: China
Payment: T/T, L/C
Shipping Port: Xiamen

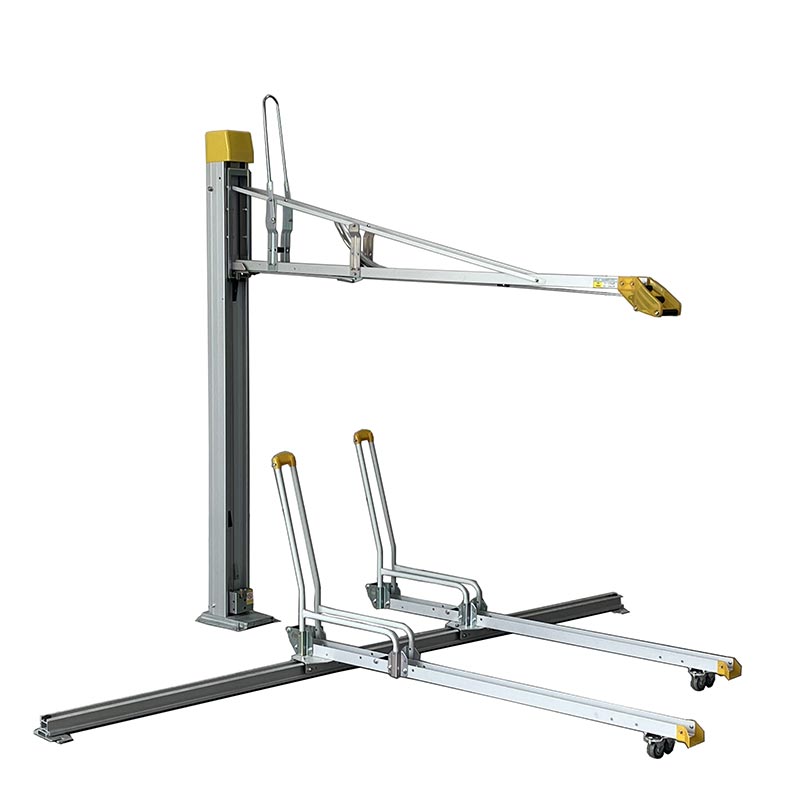

Gas Spring Assisted Aluminum Alloy Outdoor Double Tier Bike Rack are durable and offers a space-saving design for double tier bike parking. It is easy to load, with the upper rack featuring gas spring assistance, which makes accessing bikes a breeze. The lower rack is equipped with slide rails, and with the help of casters located at the bottom of the rack, it can be effortlessly moved to either side along the rails. This thoughtful design not only provides ample space for accessing the upper rack but also ensures sufficient clearance when bikes on the lower rack are being retrieved, facilitating easy access for users to pick up their bikes.
| Product Name | Gas Spring Assisted Aluminum Alloy Outdoor Double Tier Bike Rack |
| Model Number | F-QLH20; D-55mm |
| Material | Pillar, lifting rack and sliding bike rack: Aluminum alloy |
| Measurements |
Vertical lifting rack:L:1970 * W:220 * H:1820 （mm） Sliding bike rack: L:1570 * W:100 * H:720 （mm） |
| Colors | Light grey or customized |
| Capacity | 1 bike per upper rack; 1 bike per bottom tier |
| Loading |
Vertical lifting rack: 15 to 22KG; Sliding bike rack:≤40KG |
| Mount | fixing to floor using expansive anchor bolts. |
| Installation Angle | 10° or customized |
| Recommended Ceiling Height | 2500mm |
| Maintenance | Minimal maintenance required |
Advantage for User
-Expertly crafted with ergonomics in mind, this bike rack allows for effortless lifting of your bicycles with ease.
-Equipped with an automatic lift-to-secure feature, the rack ensures that once users retrieve their bike, it gently ascends to its resting position.
-With a focus on stability and security, our design guarantees that the bicycles remain firmly in place, providing peace of mind.
Benefits for site operators
-Space efficient, high-density storage in a limited space (or reduces the size of the site)
-Can be dissembled for easy of transportation.
-Easy to install
-Low maintenance.
Green cycling and storage
-Recyclable and environmentally friendly materials
Possible locations
-Both Indoor and outdoor use.
The Basic Vertical Bike Rack for Heavy Bike can be installed at the angle of 10°，30°，45° to accommodate different situations , particularly useful for sites with narrow aisles.
Upper Vertical lifting rack: Angle 10°-Centre to centre distance of 60cm;
Lower Sliding bike rack: Angle 10°-Centre to centre distance of 24cm;
We take pleasure in guiding you through the layout of your available space, ensuring that the parking area is both highly efficient and seamlessly accessible.
Current lead time is 7-9 weeks from receipt of your written purchase order. Extra time may be needed if extensive customization is required.
If you have any special requirements regarding the delivery date, please feel free to contact us.
